Free Floral Laser Cut Box SVG DXF and CDR Files

This free floral laser cut box file set makes a square decorative box with cut flower panels on the lid and sides. The finished box measures 178.7 mm wide, 178.7 mm deep, and 65.7 mm high when cut from 3 mm material, with a flat base, four side panels, and a layered square lid that sits into the top opening.

The design is meant to read as a small carved-style box when it is assembled. Flowers and curling stems are cut through the lid and side panels, so the pattern opens into the box itself; the finer petal and leaf details are engraved on the surface. If you place colored paper or a lining inside, it can show behind the floral openings, but that is only an optional decorative step.

This makes the project suitable for a small jewelry box, keepsake box, gift box, or decorative storage piece. The box has a low square form, so the floral pattern stays visible across the top instead of being limited to the side walls.

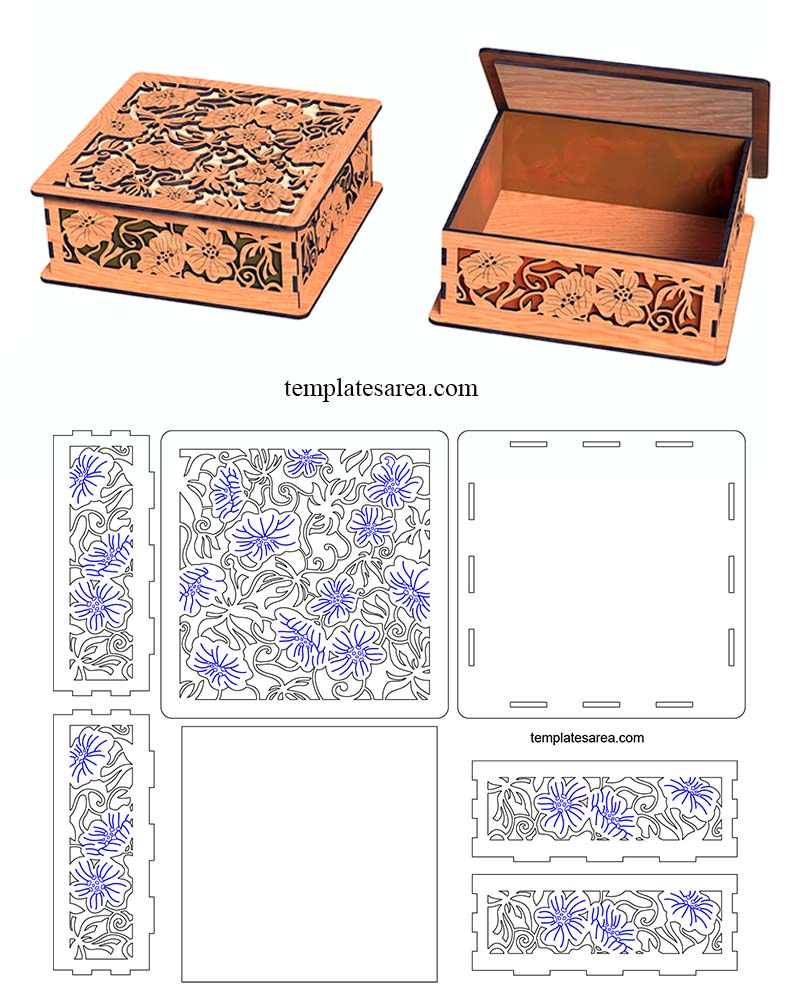

We kept the cut openings and the engraving details as separate work in the file so the flower shapes can be cut from the material while the inner lines stay as surface detail. The floral contours are hand-drawn closed paths with smooth curves, which helps the cut panels keep their rounded flower and vine shapes instead of looking like a chain of short straight segments.

Assembly is based on 7 flat parts: four side panels, one base panel, and two lid pieces. The side panels fit around the base with tight joints, so glue is not required for the main box in normal assembly. Use glue for the two lid pieces, since the lower square lid plate and the top decorative lid piece are meant to become one cap that sits into the box opening.

File details:

• Category: CNC laser cut box files
• Formats included: DXF, SVG, and CDR
• Finished size: 7 mm wide, 178.7 mm deep, and 65.7 mm high
• Material thickness: 3 mm
• Parts: 4 side panels, 1 base panel, and 2 lid pieces
• Detail setup: cut-through floral openings with engraved surface lines

Keep the design at its intended size if you want the joints to match 3 mm material as drawn. Scaling the file or using a different sheet thickness will change the slot fit, so the assembled size and tight joints should be treated as part of the 3 mm version.

Download the Free Floral Laser Cut Box Files

The download includes the DXF, SVG, and CDR versions for the same 7-piece floral box. Cut the panel shapes and flower openings from 3 mm material, engrave the fine floral details on the surface, then assemble the box from the base, side panels, and two-piece lid.
